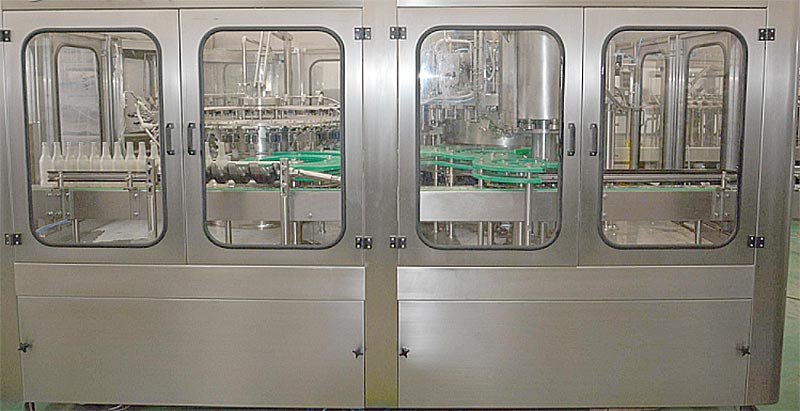

Beer Filling Equipment Description:
This Beer Filling Equipment is used to produce glass bottled beer. Beer Filling Equipment can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

1. Air conveyor is connected directly with bottle in-feed poking wheel, and installed with pneumatic bottle blocking equipment.
2. Stainless steel bottle clips will not touch the screw of bottle mouth to avoid second pollution.
3. High efficiency nozzle with water spray, and everywhere inside bottle can be washed because of water spraying by angle, bottles will be very clean and save water.
4. Clips and flip system are all from igus of Germany, it is corrosion resisting, no need bearing maintenance.
5. Beer filling equipments with high precision and high speed filling valve.
6. Magnetic torque capper to ensure the capping quality and torque.
7. Bottles go out by bottom supporting, the support plate is designed spiral down curve, so no need to adjust the machine and conveyor height.
8. Hole in the machine table is flexible and with sealings,so that the possibility of leakage is 0.
9. Main electronic pieces are all from global famous brands.
10. It can be used for water filling after simple change.

Beer Filling Equipment Rinsing part
1.Rotary rinser: applicable for wine, beverage and water cleaning.
2.The new bottle is transported through the separation screw and starwheel by the clamp and turn over device; bottle neck is held upwords, after aseptic water rinsing, the bottle neck goes up and transported to another process.
3.The rinsing contact part and out cover adopt the stainless steel material.
4.Open design gear driving.
Beer Filling Equipment Filling part
1.Adopt the German technology, utilize the isobaric filling principle design, achieve to fill the cleaned bottle.
2.Adopt isobaric mechnical valve, fast filling with high precision filling level.
3.Beer Filling Equipment Filling part adopt the guiding pole with cover function;Bottle held elevation desgin, ensures the complete seal between bottle neck and filling valve ,avoids the leakage.
4.Equip with the anti break device ;bottle break cleaning ,avoiding the next botte.
5.Equip with complete CIP cleaning function.

Beer Filling Equipment Capping part
1.Cappig part :sorted cap is capped on the filled bottle ,and then transported to the next step.
2.Capper rotates through the speed reducer machine. The cap leaves the hopper under the centrifugal function. The exit is equipped with the cap reverce dvice, when the reverce cap comes,it is changed to the right direction;the cap quantity is controlled by the photoelectric switch ,ensures the caping falling effect.
3.If the container has the cap,the second cap cannot go in ,which utilizes the cap.
